Electric Motor Life Improved with Greasemax Lubrication
GreaseMax single point automatic lubricators provide a continuous controlled grease output and are ideal for electric motor lubrication.
Lubrication improvements can significantly assist in increasing the life and reliability of electric motors.
Premature motor failure is likely to be caused by bearing failure, for which lubrication is a major factor.
Lubricants have a finite life so re-lubrication is essential for long term motor reliability.
However, re-lubrication itself can introduce human error factors which will reduce motor life, such as the application of the wrong grease, too much grease or missed lubrication.
The way in which a motor is re-lubricated has a significant influence on the outcome. Re-greasing the motor with the motor stopped (as is mostly the case to comply with OH&S requirements) may result in a temporary excess of grease and this excess being forced into the motor internals when it is re-started, even if the motor has a grease relief.
Grease purging from the relief when a stopped motor is greased indicates an over-filled bearing but this purging may not be enough to prevent excess grease, still remaining, from getting into the motor internals when the motor is re-started.
Typically, the greasing may be done on a down-day so that the motor is cold. In these conditions older, or colder grease in the grease relief may make the relief less functional and an excess grease input may not exit via the grease relief, as it will do if greasing is done with the motor operating and its temperatures stabilised. In this condition the grease relief functions more effectively.
Continuous lubrication provides the best lubrication results for improved bearing life. Re-greasing the motor when it is running allows a more effective, controlled result. Bearing life is improved, there is a reduced possibility of excess grease being applied and contaminating the motor internals and the problems of the wrong grease being used, foreign matter contamination from dirty grease nipples or lubrication being missed entirely are eliminated.

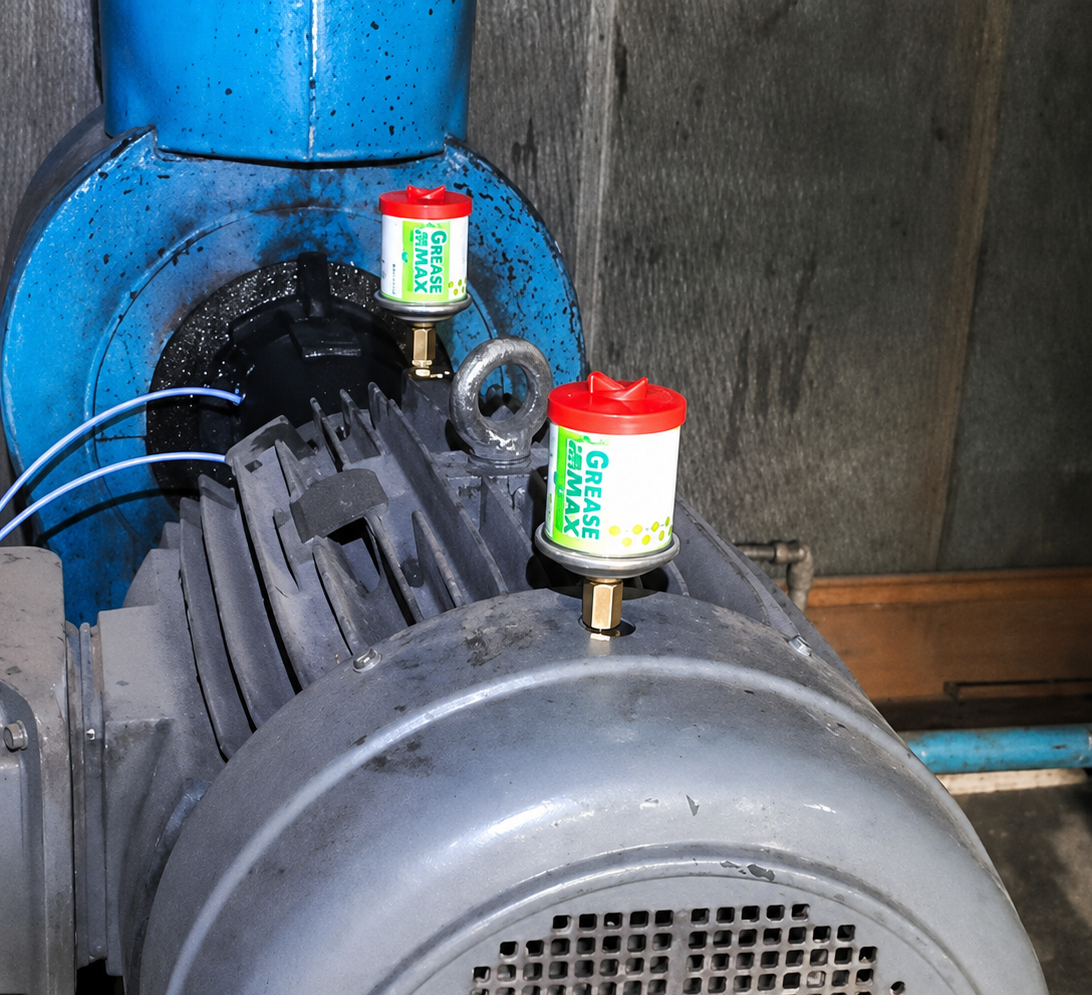

GreaseMax single point automatic lubricators provide a continuous controlled grease output and are ideal for motor lubrication. GreaseMax overcomes motor lubrication problems and works reliably in all conditions – hot, cold, wet, vibrating and without maintenance or adjustment. This adds up to less maintenance downtime and therefore increased productivity and ROI.
For more information contact:
Delta International Sales
Phone: +61 (0)3 9723 8600
Email: sales@dis.com.au
Web: dis.com.au
Associated companies
Featured Supplier

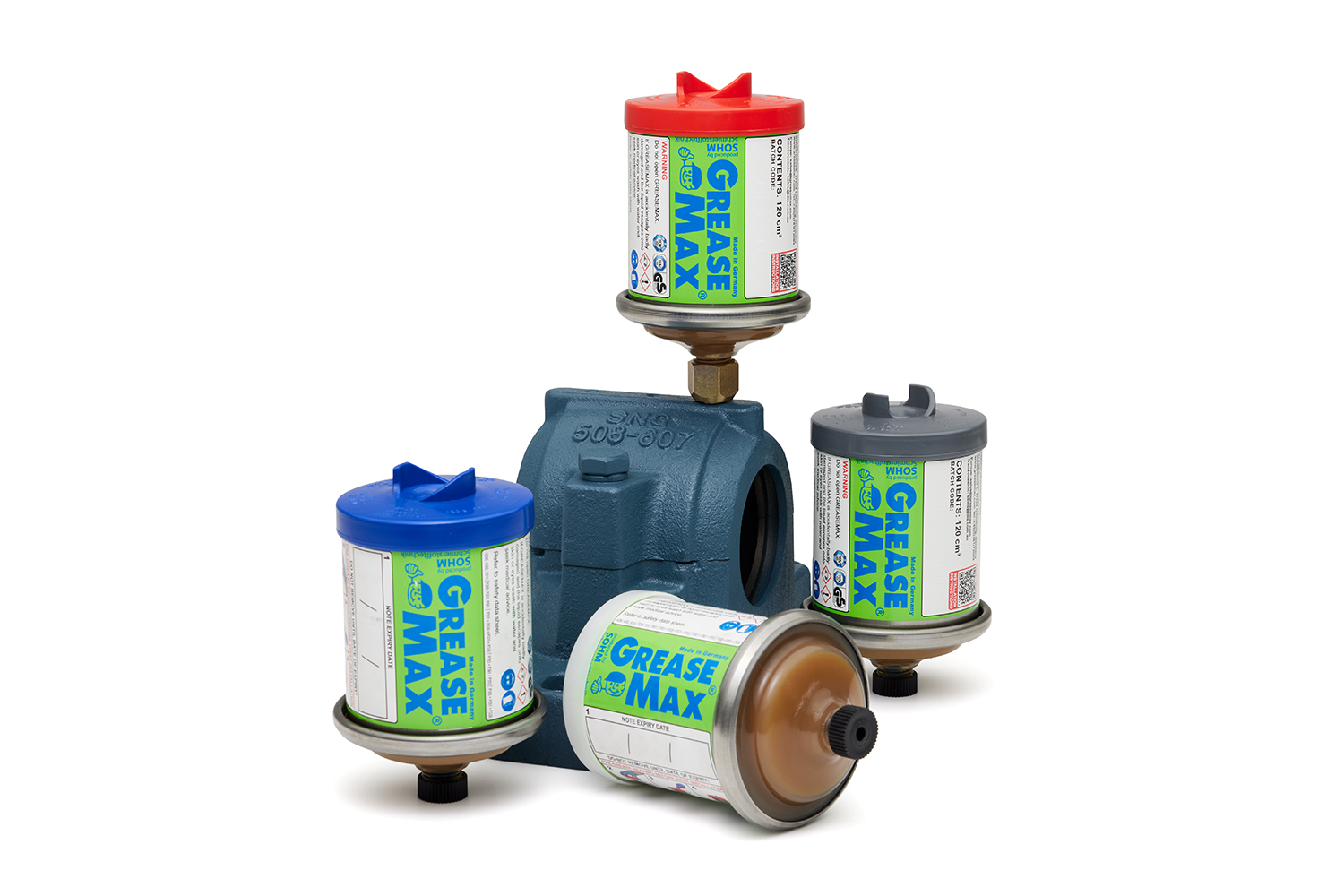

GreasemaxLubricationMachine MaintenanceGreaseMax is a chemically operated automatic lubricator It is designed to be screwed into the bearing grease nipple seating, or onto an extension line, and to feed lubricant at a CONSTANT RATE for a SET PERIOD of time. GreaseMax is designed to operate for a set period of time. There are 4 operating periods; 1, 3, 6, and 12 months. After the service time has elapsed, the unit is replaced with a new unit. Because it is self regulating it should be used in conjunction with the plant maintenance scheduling. Therefore changeovers of the GreaseMax can be planned and carried out at set periods. GreaseMax operation is simple and trouble free. Quite frequently its capabilities are not at first appreciated because of its simplicity. GreaseMax can be used anywhere; on most applications, both large and small, even underwater. Importantly, GreaseMax has no electrical or mechanical components and has only one moving part, which is the piston. For this reason GreaseMax is extremely reliable.
